Nano Grid in Action
Five 535 Watt, Bifacial, 21.1% efficient Mono Silicon Solar Panels
Three rows of solar panels tilting toward the sun.
Programable Controller, that uses GPS for accurate time and planet location, Inclination sensor to determine solar panel tilt angle, anemometer to prevent damage during heavy wind events, and Hall effect sensors to prevent overshoot.
Mechanical components of the single-axis tracking system
Chain sprocket that rotates all 4 solar panels in tandem; 9 amp, 40:1 gear motor, 24 DC motor – strong enough to dump snow loads
Anemometer Sensor
Drone shot showing the 1,000 SF required for the array
Trailer with power electronics and batteries
Back of trailer with specs
Power Ports
Closeup of solar port
Closeup of load and charging ports
Configuration screen, power plant dashboard, also feeds to Phone app. anywhere on earth with Starlink providing communications.

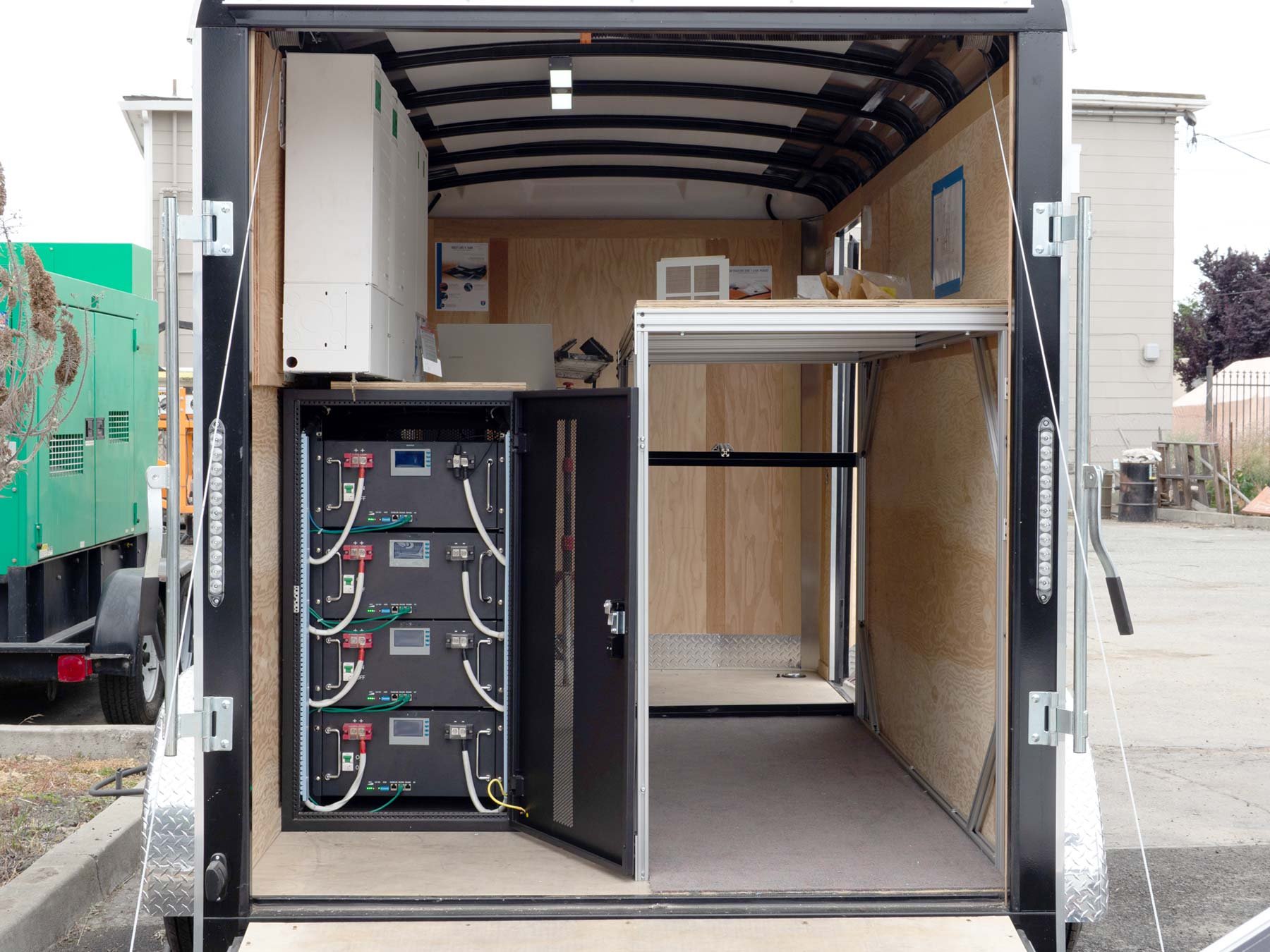

Battery cabinet showing solar panel storage area.
Battery closeup
